Revolutionizing Textile Industry Cooling with Symphony Venti-Cooling.

Hero Banner
Book A Free Site Visit Download Brochure

What’s Preventing Your Production Line From Running At Full Efficiency?

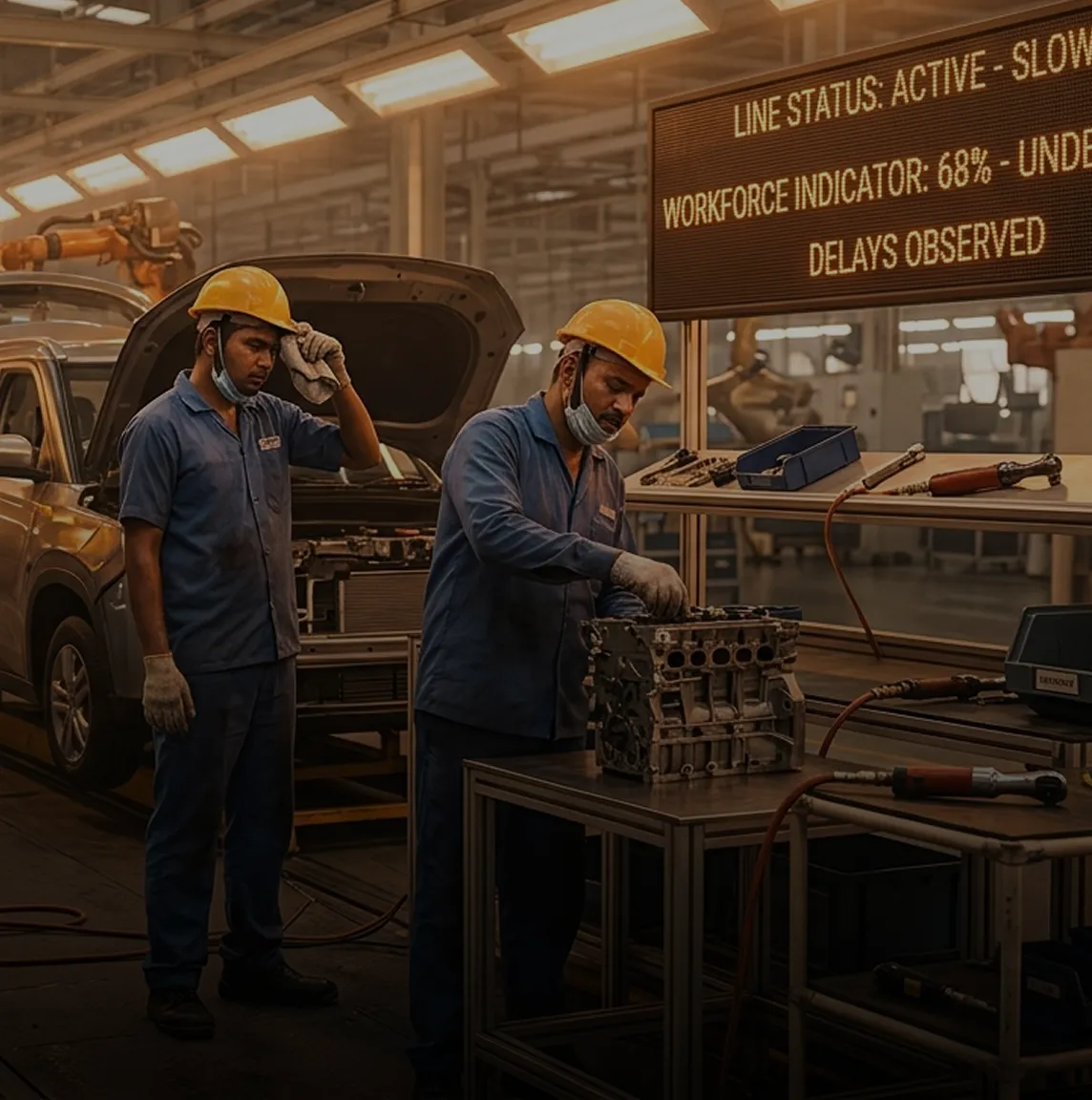

Machine Downtime

Worker Fatigue & High Absenteeism

Excessive heat on the assembly line leads to rapid physical & cognitive exhaustion. This leads to a spike in unforeseen absenteeism, disrupting manufacturing schedules.

Worker Fatigue

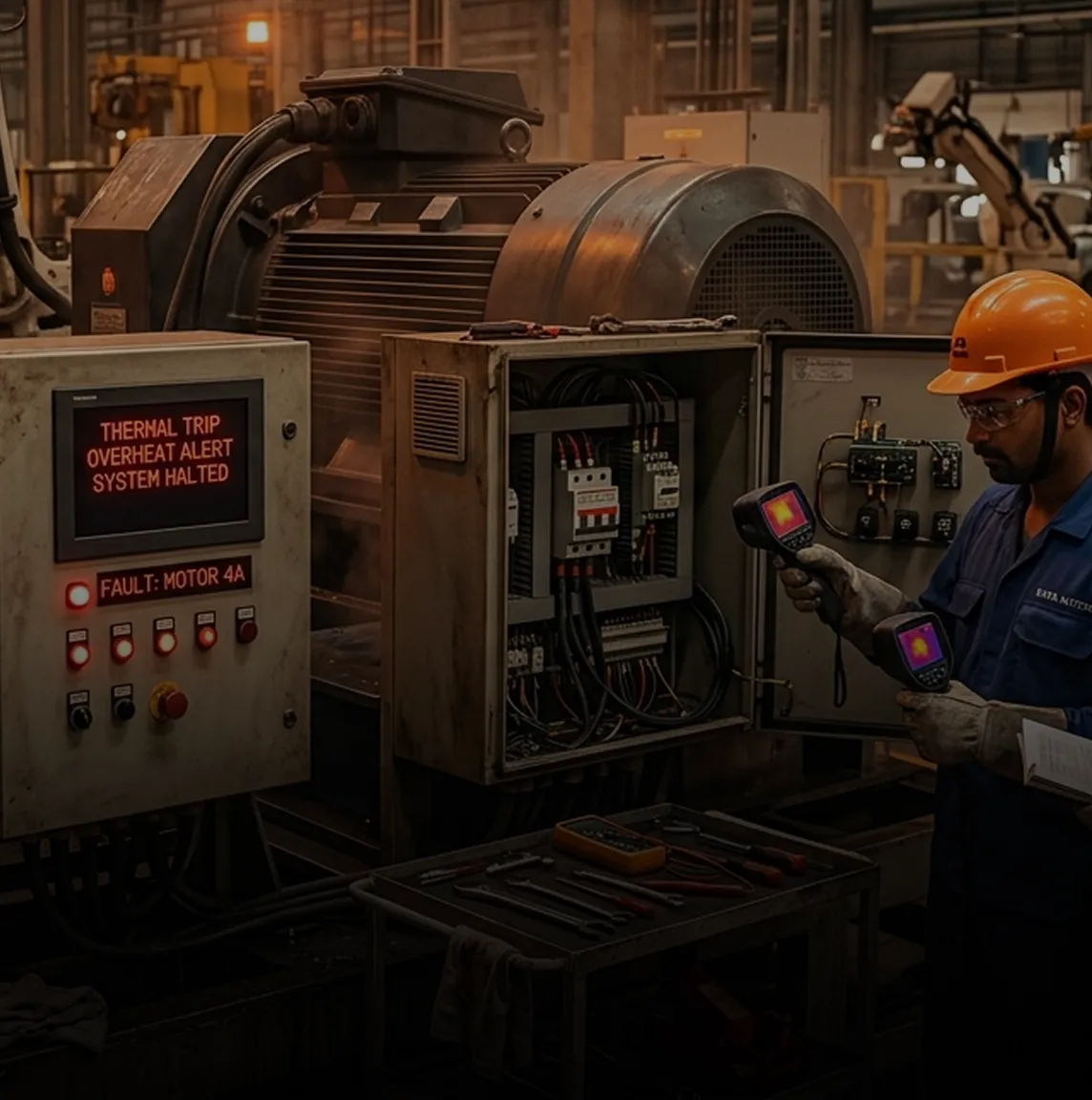

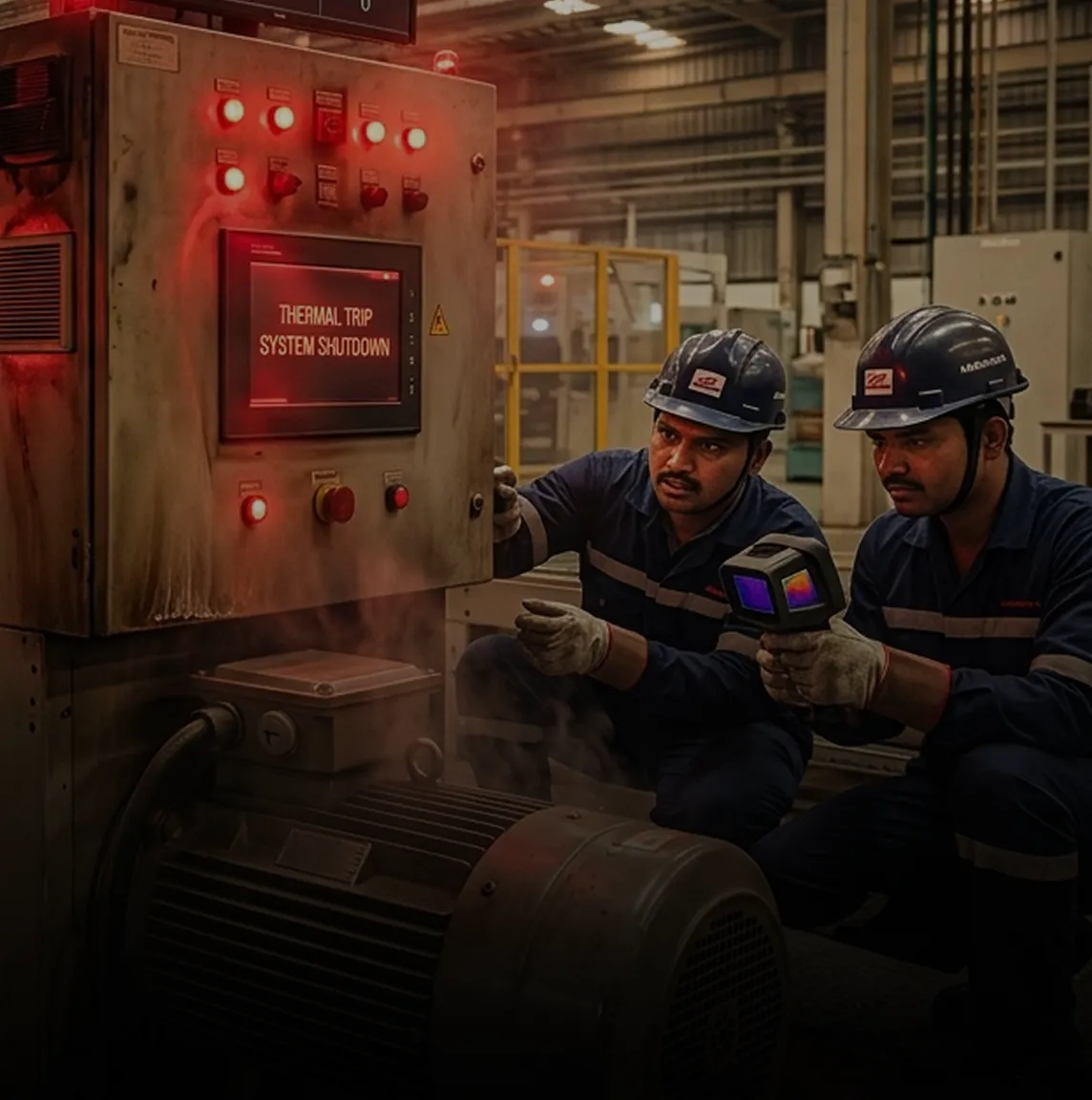

Machine Overheating & Costly Downtime

Stagnant, hot air prevents effective heat dissipation from control panels and motors, triggering frequent thermal trips, emergency shutdowns, and unplanned maintenance cycles.

Fibre Quality

Finish & Quality Defects

High temperatures and fluctuating humidity levels directly impact sensitive processes like painting and coating. This increases rework rates and scrap costs.

Uneven Dyeing

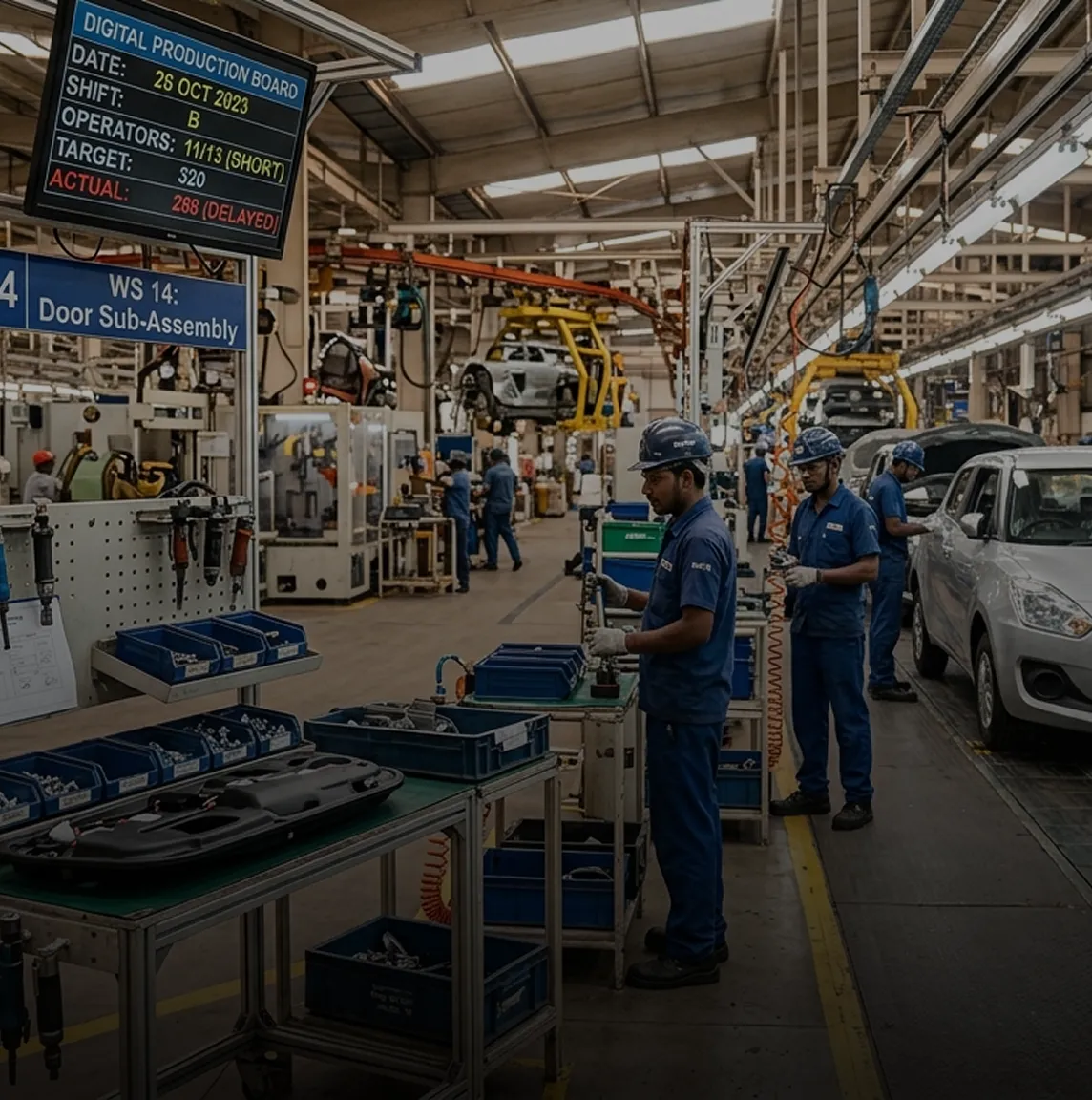

Retention & Seasonal Attrition

Technicians and operators are likely to migrate to competitors with better climate control, leaving you with the high cost of training new hires during peak production seasons.

BENEFITS OF INDUSTRIAL COOLERS

Scaling Precision Across Automotive Shopfloors with Energy Efficiency

Symphony Large Space Venti-Cooling (LSV) is engineered for the industrial intensity of automotive manufacturing. Unlike sealed AC systems that cannot cope with the open, contaminated air of manufacturing floors, Symphony LSV thrives in exactly these conditions delivering continuous 100% fresh air at high velocity across massive assembly and fabrication lines.

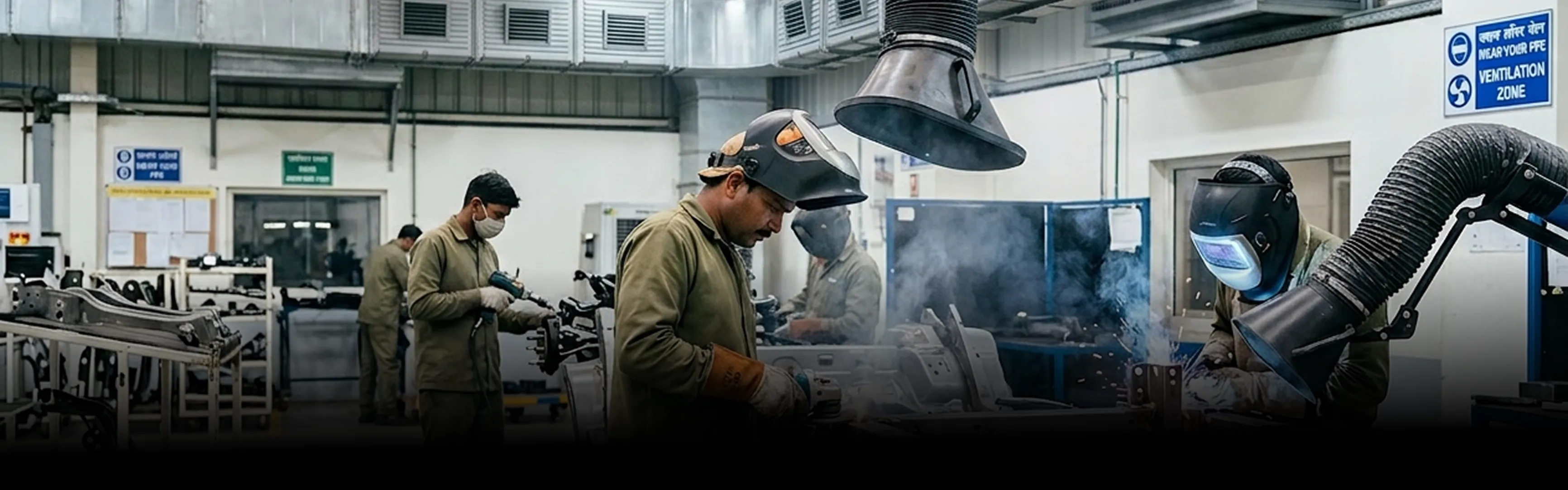

Spinning vector

Worker Comfort & Fume Control

Ensures a pleasant environment that rapidly displaces welding fumes, reducing respiratory strain and keeping technicians focused.

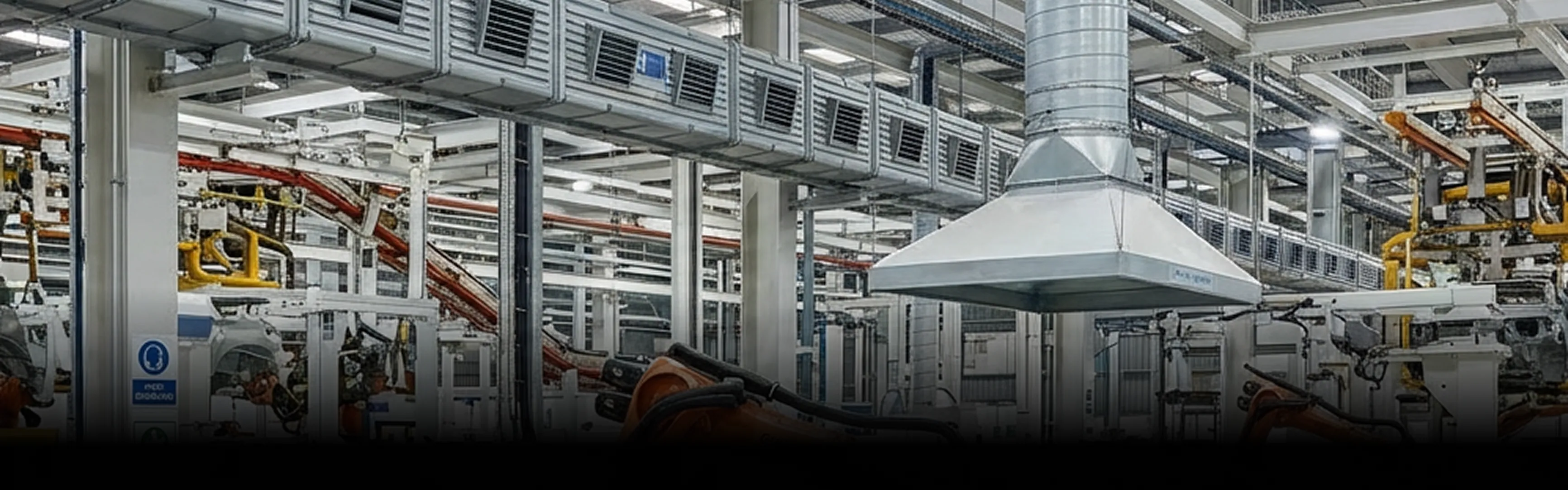

Weaving / Knitting vector

Heat & Dust Reduction

Eliminates "heat pockets" from machinery and suppresses airborne particulates, protecting sensitive components.

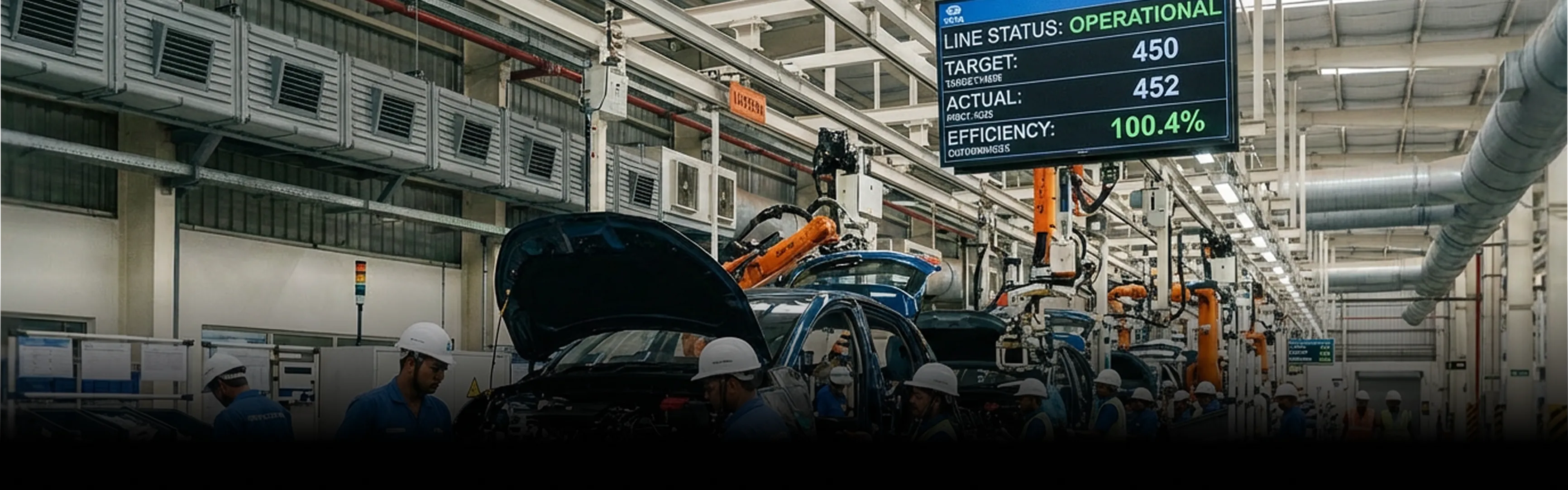

Dyeing / Printing vector

Productivity & Safety Boost

Ensures air circulation, maintaining high cognitive performance to reduce assembly errors and heavy-machinery safety incidents.

Finishing vector

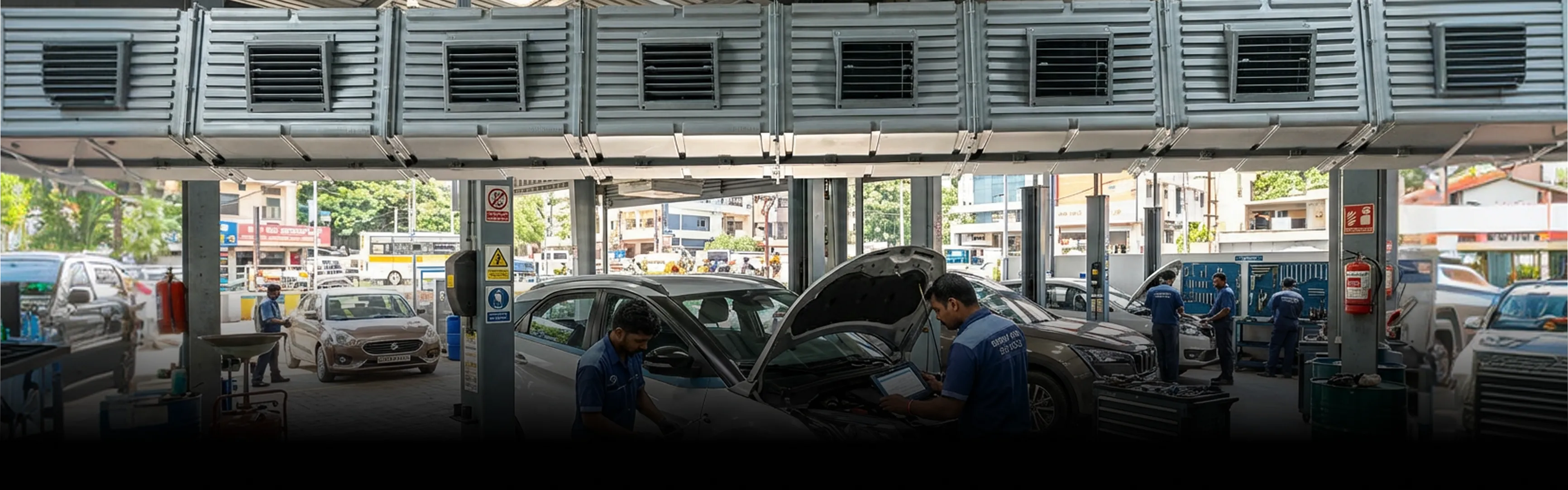

Service Center & Garage Comfort

Optimizes the customer and mechanic experience in semi-open service bays, ensuring outdoor temperatures do not affect diagnostic accuracy or service turnaround times.

Ready to future-proof your assembly lines with sustainable cooling and significant gains in operational throughout?
Connect To Our Expert
KEY BENEFITS

Operational Efficiency That Improves Profit Margins

Energy

Energy cost ↓ 80-90%

Operational

Operational cost ↓ ₹2/sq.ft/month

Productivity

Productivity ↑ 10-20%

Cooling

Cooling coverage ↑ 2500 sq.ft/unit

ROI

ROI < 12 months

Here is what our Key Opinion Leader has to say

Maintaining a high-performance, breathable environment on the assembly line is no longer optional; it’s a competitive necessity. Symphony’s Venti-Cooling technology addresses the specific thermal loads of massive shopfloors where traditional AC is financially unfeasible. By ensuring 100% fresh air displacement, we are not just cooling workstations; we are protecting the precision and productivity of the entire manufacturing ecosystem.

Textile plant with cooling units
Choose the

Perfect Cooling Unit for Your Textile Plant

Venti-cool 11U

Venticool 25 U

2 side discharge option (Top & Bottom)

  • check

    Air Delivery: 25,000 CMH.

  • check

    Cooling Area: Up to 1600 sq. ft.

  • check

    Efficiency: 80% cooling efficiency with honeycomb pads

  • check

    Capacity: 70L (Top), 40L (Down) tank

  • check

    Fan Power: 1.5 kW motor, 620 mm fan diameter

Venti-cool 40

Venticool 40

2 side discharge option (Top & Bottom)

  • check

    Air Delivery: 40,000 CMH.

  • check

    Cooling Area: Up to 2500 sq. ft.

  • check

    Efficiency: Four side cooling pads for superior cooling

  • check

    Capacity: 40L (Top), 40L (Down) tank

  • check

    Fan Power: 3 kW motor, 710 mm fan diameter

SPS 45

SPS 45

Side discharge option

  • check

    Air Delivery: 40,000 CMH.

  • check

    Efficiency: 84% evaporative efficiency with honeycomb pads

  • check

    Capacity: 80L tank

  • check

    Motor Power: 7.5 kW motor

SPS 75

SPS 75

Side discharge option

  • check

    Air Delivery: 60,000 CMH.

  • check

    Efficiency: 84% evaporative efficiency with honeycomb pads

  • check

    Capacity: 100L tank

  • check

    Motor Power: 15 kW motor

Venti-cool 11U

Venticool 11U

3 side discharge option (Top, Bottom & Side)

  • check

    Air Delivery: 11,000 CMH.

  • check

    Cooling Area: Up to 700 sq. ft.

  • check

    Efficiency: 75% cooling efficiency with honeycomb pads

  • check

    Capacity: 50L tank (Top & Side), 30L tank (Bottom)

  • check

    Fan Power: 0.45 kW motor, 425 mm fan diameter

Venti-cool 20U

Venticool 20U

2 side discharge option (Top & Bottom)

  • check

    Air Delivery: 20,000 CMH.

  • check

    Cooling Area: Up to 1200 sq. ft.

  • check

    Efficiency: 80% cooling efficiency with honeycomb pads

  • check

    Capacity: 70L tank (Top), 40L tank (Down)

  • check

    Fan Power: 1.1 kW motor, 620 mm fan diameter

Movicool XXL

Movicool XXL

  • check

    Air Delivery: 20,000 CMH.

  • check

    Cooling Area: 1500 sq. ft.

  • check

    Efficiency: 80% cooling efficiency with honeycomb pads

  • check

    Capacity: 70L tank

  • check

    Motor Power: 1.1 kW motor, 620 mm fan diameter

  • check

    Portability: Heavy duty lockable wheels for portability

Venti-cool 22s

Venticool 22S

Side discharge option

  • check

    Air Delivery: 22,000 CMH.

  • check

    Cooling Area: Up to 1300 sq. ft.

  • check

    Efficiency: 80% cooling efficiency with honeycomb pads

  • check

    Capacity: 70L tank

  • check

    Motor Power: 1.1 kW motor, 620 mm fan diameter

L200

L200

  • check

    Air Delivery: 8500 m³/hr*

  • check

    Air throw distance: Up to 10m

  • check

    Efficiency: Three side cooling pads for superior cooling

  • check

    Capacity: 200L tank

L125

L125

  • check

    Air Delivery: 8500 m³/hr*

  • check

    Air throw distance: Up to 10m

  • check

    Efficiency: Three side cooling pads for superior cooling

  • check

    Capacity: 125L tank

DD125

DD125

  • check

    Air Delivery: 17,000 m³/hr*

  • check

    Air throw distance: Up to 10m

  • check

    Efficiency: Three side cooling pads for superior cooling

  • check

    Capacity: 125L tank

XE200

XE200

  • check

    Air Delivery: 18,000 m³/hr*

  • check

    Air throw distance: Up to 11m

  • check

    Efficiency:Three side cooling pads for superior cooling

  • check

    Capacity: 200L tank

XE100

XE100

  • check

    Air Delivery: 18,000 m³/hr*

  • check

    Air throw distance: Up to 11m

  • check

    Efficiency: Three side cooling pads for superior cooling

  • check

    Capacity: 100L tank

Connect To Our Expert Download Brochure
Trusted by

Industry Leaders

logo1
logo2
logo3
logo4
logo5
logo6
logo7
logo8
logo10
logo11
logo12
logo13
logo19
logo14
logo15
logo16

From Heat Challenges to Performance Gains - Proven Case Studies

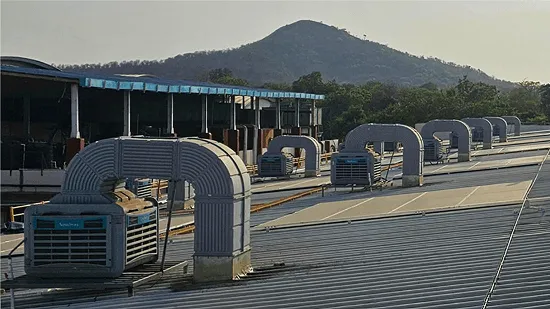

Textile - Indo Count Industries Ltd., Vapi Arrow

Textile - Indo Count Industries Ltd., Vapi

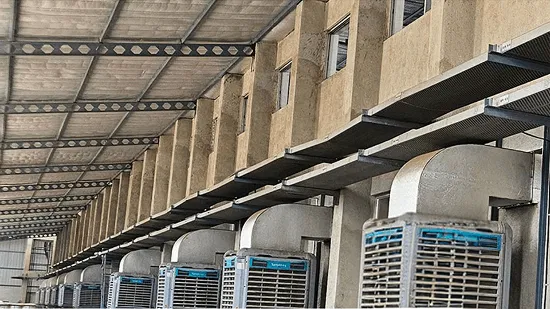

Textile - Borana Weavs, Surat Arrow

Textile - Borana Weavs, Surat

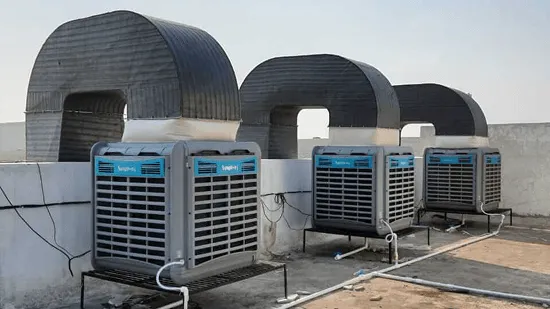

Textile Factory - Dalsaniya Textile, Surat Arrow

Textile Factory - Dalsaniya Textile, Surat

Ready to future-proof your assembly lines with sustainable cooling and significant gains in operational throughput?
Connect To Our Expert

Frequently Asked Questions

Symphony LSV delivers high-volume, fresh-air cooling that reduces heat pockets and stabilises temperatures across heavy-heat zones.
